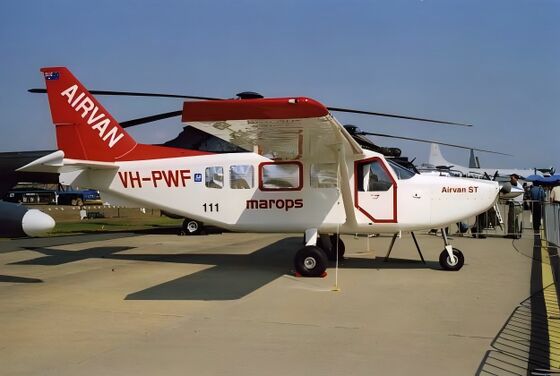

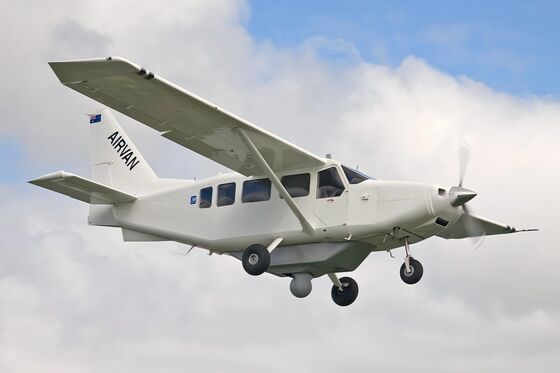

New Aircraft for Sale: GA8 AIRVAN by GippsAero Pty Ltd, A Cost Effective Choice
| Nguồn gốc | Úc |
|---|---|
| Hàng hiệu | GippsAero |
| Chứng nhận | FAA |
| Số mô hình | GA8 |
| Số lượng đặt hàng tối thiểu | 1 ea |
| Điều khoản thanh toán | T/T |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
Mô tả sản phẩm
The new whole aircraft for sale! GA8, a cost effective choice for freight, parachuting, short-distance transportation and special missions (such as surveillance).
The GA8 Airvan is an excellent cost effective multi role aircraft that lends itself to a variety of operations. One instance of role optimisation is to change from the passenger to freight configuration which can be very quickly accomplished with our unique feet locking mechanisms,designed specifically for GA8 Airvan to meet the latest safety certification requirements.
The Airvan Freighter is designed to be capable, reliable, efficient and a cost effective load hauling aircraft. Parcel freight requires a commodious cargo compartment - theAirvan provides an area of 3.4 m³(118 cubic ft)that is accessed by a rear, in-flight, sliding door measuring 42.5 inches by 42 inches. The size of entry allows for fork lift loading ensuring quick turn around times. Cabin floor height, a critical factor in relation to employees' Occupational Health and Safety, is designed to reduce bending and lifting.
Other unique features include the removal and blanking off of the duplicated cockpit dual controls, the removal of the light weight baggage locker and associated nets and the removal of the passenger cabin ventilation fan and associated ducting - all intended to reduce the empty weight even further and thereby increasing payload.
The standard GA8 Airvan has a cockpit that is specifically designed for single pilot operation with all controls, instrumentation, avionics and essential selectors and switches grouped for comfortably access by the pilot in both VFR and IFR configurations. To utilize the now vacant space on the RHS of the cockpit a special parcel bin has been certified and this locker can hold approximately 100lbs of smaller parcels that the pilot can retrieve whilst seated, or can be accessed from the RHS cockpit door to allow rapid delivery of these small items without having to access the main cargo area via the large sliding rear cabin door .
The GA8 Airvan, initially certified in 2000, has now established a history of consistent service with world-wide operators and demonstrated capability as a rugged, reliable, efficient and highly cost effective platform for numerous tasks including passenger transport, tourist scenic flights, freight hauling, emergency work associated with flood and fire relief, medevac, and as a tactical reconnaissance aircraft. It’s load carrying ability and low fuel consumption at loiter have made it an excellent platform for consideration as a dedicated observation and communications platform.
The ability to carry full fuel, a crew of three and over 550lbs of mission payload have made the GA8 Airvan ASTRA the most cost effective platform available.
(It's for surveillance role features: Cineflex Camera Installation)
Specification
- DIMENSIONS
| Length | 29 ft 4.3 in (8,949 mm) |
| Wingspan | 40 ft 8.6 in (12,412 mm) |
| Height | 12 ft 9in (3,885mm) |
| Wing Area | 208 ft² (18.75m²) |
| Wing Loading | 19.2 1b/t² (96.75 kg/m²) |
| Cabin Height | 44.9 in (1,140mm) |
| Cabin Length (Firewall to Aft Cargo Bin) | 182.6 in (4,640mm) |
| Cabin Width | 50 in (1,270mm) |
| Main Cargo Area Floor Area | 54 ft² (5m²) |
| Main Cargo Area Internal Volume | 164 ft (4.43m³) |
| Cabin Door | 41.5 in (1,054mm) |
- BAGGAGE CAPACITY
| Cabin Shelf | 18 ft³ (0.53 m³) |
| Aft Locker | 13 ft³ (0.35 m³) |
| Cargo Pod | 18 ft³ (0.53 m³) |
| Seats | 8 (2 crew, 6 passenger) |
- ENGINE
| NORMALLY ASPIRATED | TURBOCHARGED |
| Lycoming IO-540-K1A5, 300 hp | Lycoming IO-540-AH1A, 320 hp |
- PROPELLER
| NORMALLY ASPIRATED | TURBOCHARGED |
| Hartzell 2-Blade | Hartzell 3-Blade |
- DESIGN WEIGHTS AND CAPACITIES
| NORMALLY ASPIRATED | TURBOCHARGED | |
| Maximum Takeoff Weight | 4,000 lbs (1,905 kg) | 4,200 lbs (1,905 kg) |
| Typical Empty Weight | 2,275 lb (1,031 kg) | 2,374 lbs (1,076 kg) |
| Maximum Useful Load | 1,725lb(783kg) | 1,826lbs(828kg) |
| Optional Cargo Pod Capacity | 440 lb (200 kg) | |
| Fuel Capacity | 87.7 US Gal (332 ltr) |
Performance
- TAKEOFF
| NORMALLY ASPIRATED | TURBOCHARGED | |
| Ground Roll (Sea Level, ISA, MTOW) | 1,378 ft (420 m) | 800 ft (244 m) |
| Over 50 ft Obstacle | 2,066 ft (630 m) | 1,600 ft (488 m) |
| Climb Rate | 731 fpm (3.7 m/s) | 904 fpm (4.6 m/s) |
- CRUISING
| NORMALLY ASPIRATED | TURBOCHARGED | |
| Typical Cruise Speed | 130 ktas (240 kph) | 135 ktas (250 kph) |
| Fuel Burn at Typical Cruise | 15 gph (57 litres/hr) | 18 gph (68 litres/hr) |
| Range at Typical Cruise | 546 nm (1,011 km) | 567 nm (1,050 km) |
| Maximum Endurance | 8.5 hrs @40% power | 8.2 hrs @ 40% power |
| Certified Ceiling | 14,500 ft (4,420 m) | 20,000 ft (6,096 m) |
- LANDING
| NORMALLY ASPIRATED | TURBOCHARGED | |
| Ground Roll | 492 ft (150 m) | 483 ft (147 m) |
| Over 50 ft Obstacle | 1,213 ft (370 m) | 1,621 ft (494 m) |
- V-SPEEDS
| NORMALLY ASPIRATED | TURBOCHARGED | |
| Vr | 61 KIAS | 61 KIAS |
| Vx | 69 KIAS | 69 KIAS |
| Vy | 81 KIAS | 81 KIAS |
| Va | 121 KIAS | 121 KIAS |
| Vso | 57 KIAS | 57 KIAS |
| Vs1 | 64 KIAS | 64 KIAS |
The GA8 Airvan delivers industry's best economics for this class of aircraft achieving IATA fuel benchmark of 3.5 litres per 100 Pax km.
Contact us for prices.
